A model of mycobacterial MutT1 mediated regulation of two-component signalling
Creator
s
Description

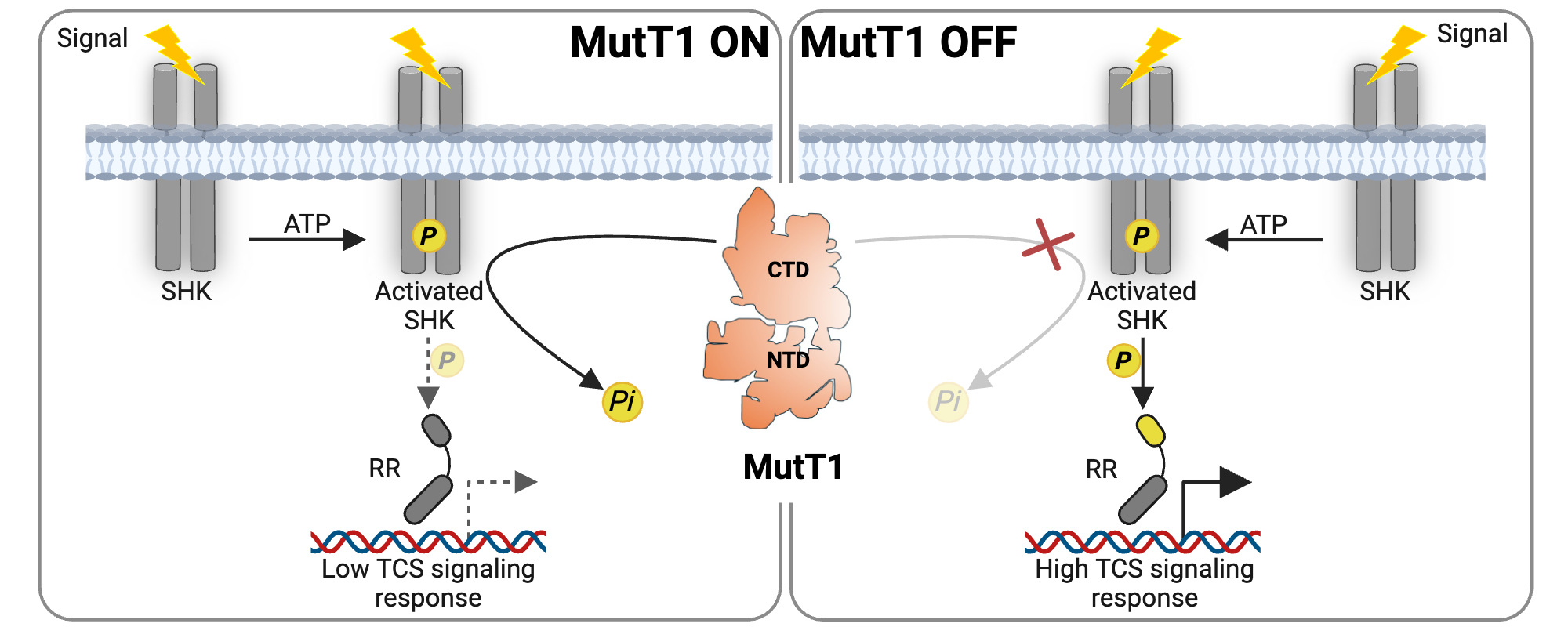

The illustration shows MutT1 dephosphorylates sensor histidine kinase (SHK), thereby regulating downstream signaling in bacteria. Mycobacterial MutT1 contains N-terminal domain (NTD) Nudix hydrolase motif and a C-terminal domain (CTD) histidine phosphatase motif. The CTD domain of MutT1 dephosphorylates SHK and releases Pi. RR- response regulator.
