Cytokine Multiplex Assay
This template is fully editable in BioRender
- Swap in different text, shapes, & icons
- Recolor and rearrange every icon, line, & label
- Export or share for any use case
Join 4M+ scientists already making publication-ready figures
Description:

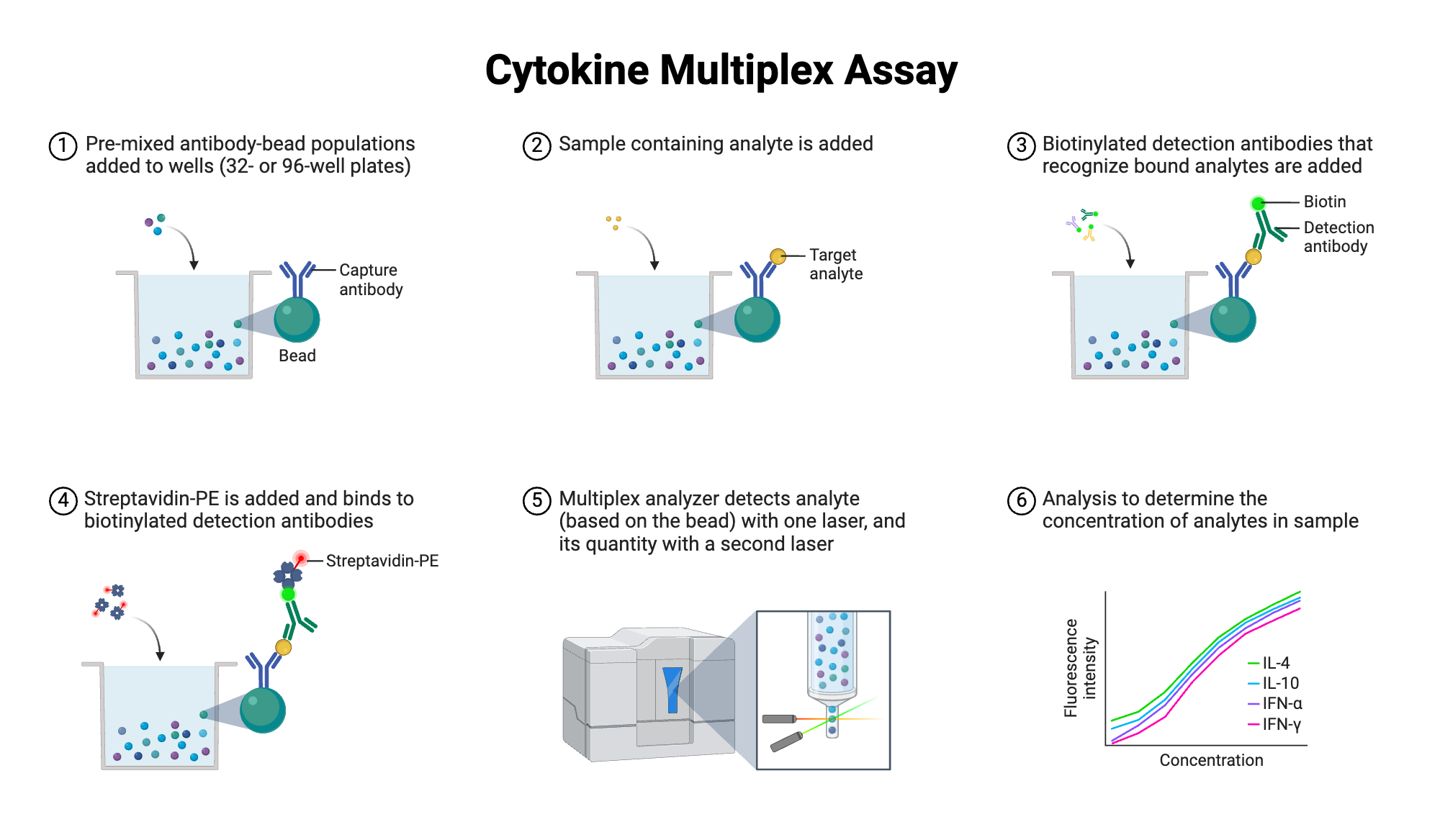

This template outlines a six-step cytokine multiplex assay, where antibody-coated beads capture target analytes from a sample and are then labeled with biotinylated detection antibodies and streptavidin-PE. A multiplex analyzer identifies each bead and its bound analyte using two lasers, generating concentration curves for cytokines such as IL-4, IL-10, IFN-alpha, and IFN-gamma.
