Human Pre-rRNA Processing and Cleavage Sites

Created by

Eri Anastas

Use This Template – Free

No credit card required to sign up.

This template is fully editable in BioRender

Swap in different text, shapes, & icons
Recolor and rearrange every icon, line, & label
Export or share for any use case

Join 4M+ scientists already making publication-ready figures

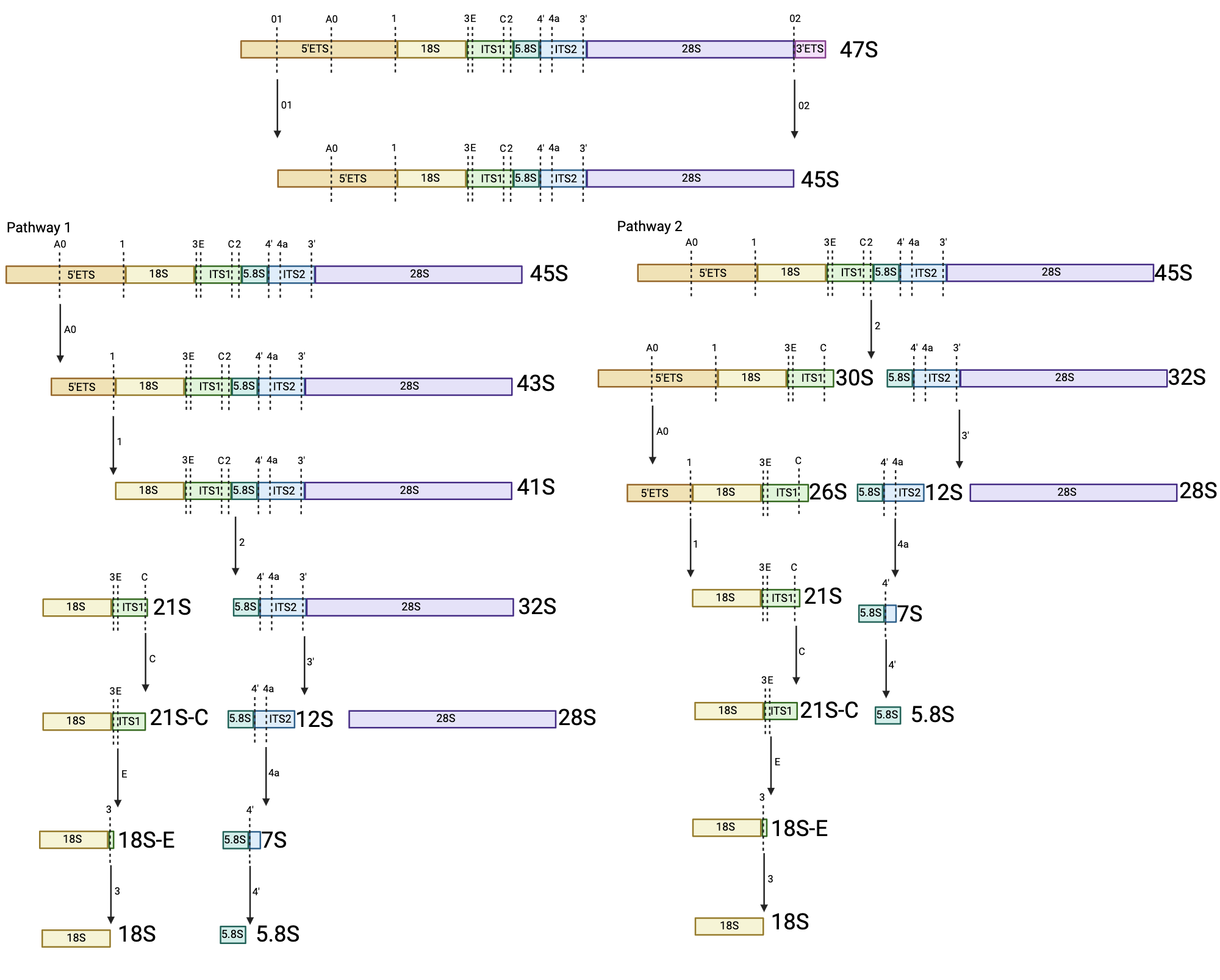

Description: A color-coded schematic of pre-rRNA processing steps and cleavage sites. The Pre-rRNA that gives rise to the 18S, 5.8S, and 28S rRNA components is transcribed as a single unit of the 47S rRNA that then undergoes stepwise processing. The spacers between the mature rRNA forms known as the external and internal transcribed spaces (5'ETS, ITS1, ITS2, and 3'ETS) are cleaved and removed by ribonucleases to give rise to the mature forms.
