Nitric Oxide and Hydrogen Sulfide Pathways in Smooth Muscle Relaxation
Creator
s
Description

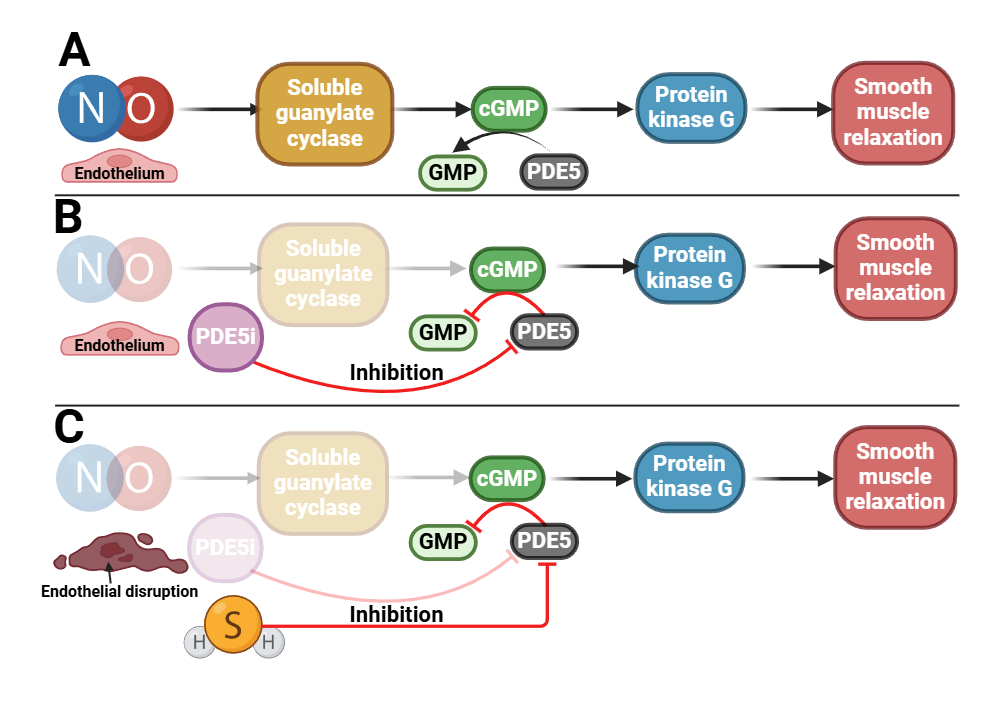

This figure illustrates the role of nitric oxide (NO) and hydrogen sulfide (H₂S) in regulating smooth muscle relaxation through the cGMP pathway. Panel A shows the typical activation of soluble guanylate cyclase leading to smooth muscle relaxation. Panel B highlights the inhibitory effect of PDE5i on this pathway, while Panel C illustrates the disruption of endothelial function and the subsequent inhibition by hydrogen sulfide.
