Northern Blot
This template is fully editable in BioRender
- Swap in different text, shapes, & icons
- Recolor and rearrange every icon, line, & label
- Export or share for any use case
Join 4M+ scientists already making publication-ready figures
Description:

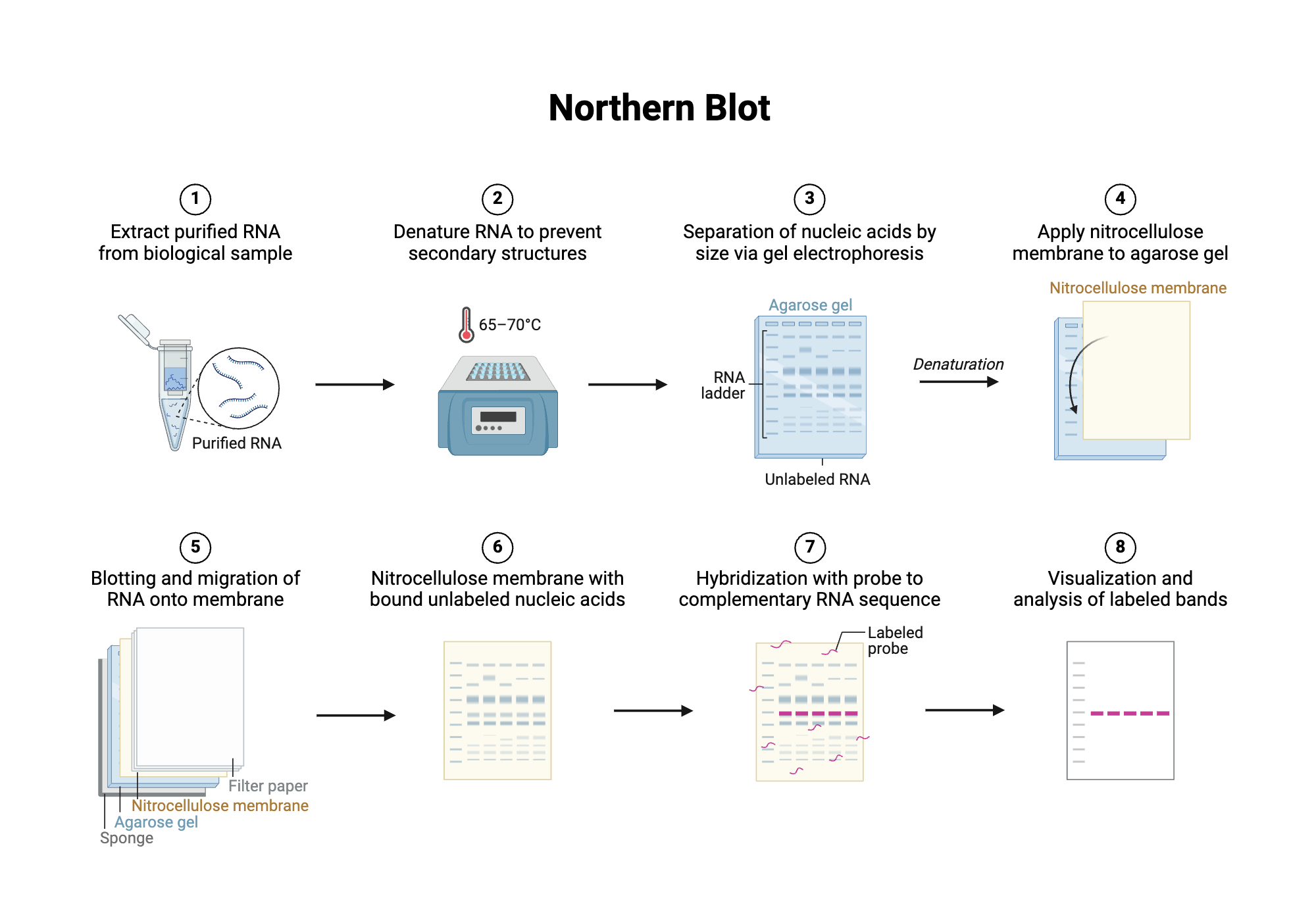

This template outlines the eight steps of a Northern blot, from extracting and denaturing purified RNA through gel electrophoresis separation and transfer onto a nitrocellulose membrane. It continues through hybridization with a labeled probe complementary to the target RNA sequence and ends with visualization of the labeled bands.
