The activation of Toll-like receptors 2 and 4 by E. coli and GBS

Created by

Aline Bjerkhaug

Use This Template – Free

No credit card required to sign up.

This template is fully editable in BioRender

Swap in different text, shapes, & icons
Recolor and rearrange every icon, line, & label
Export or share for any use case

Join 4M+ scientists already making publication-ready figures

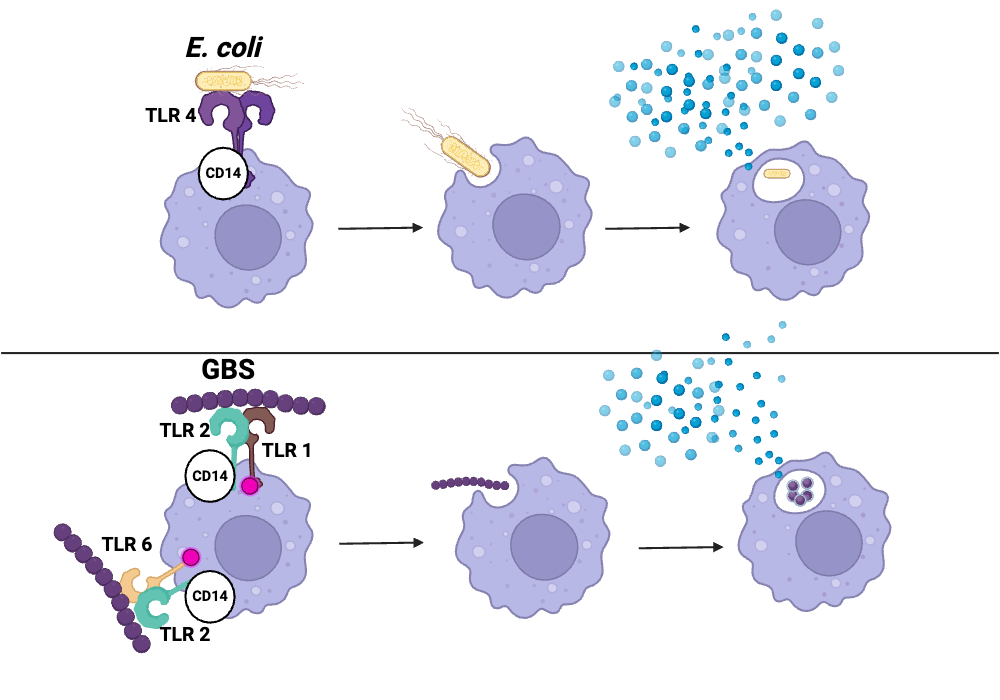

Description: TLR4 is specialized in recognizing lipopolysaccharides (LPS), a major component of the outer membrane of gram-negative bacteria like E. coli. TLR2 is primarily responsible for recognizing bacterial peptidoglycans, which are found in the cell walls of gram-positive bacteria like GBS. When GBS engages with TLR2, either as a whole bacterium or through its peptidoglycan components, the receptor forms a heterodimer with TLR1 or TLR6, activating downstream signaling pathways.
