The Zinc importation systems present in P. aeruginosa

Created by

Josephine Goodall

Use This Template – Free

No credit card required to sign up.

This template is fully editable in BioRender

Swap in different text, shapes, & icons
Recolor and rearrange every icon, line, & label
Export or share for any use case

Join 4M+ scientists already making publication-ready figures

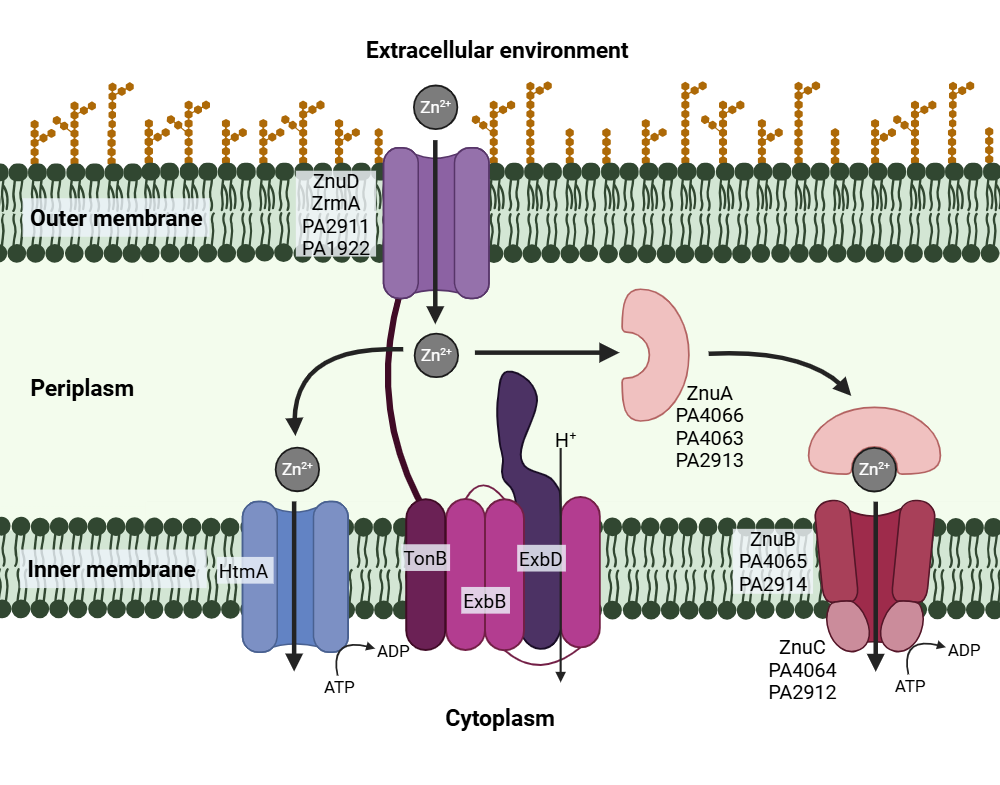

Description: In addition to the ZnuABCD system found in many gram-negative bacteria P. aeruginosa has several other putative Zn2+ import systems. PA2911-PA2914 and PA4063-PA4066 both share similarities with ZnuABCD, with PA2911-PA2914 is predicted to interact with chelated forms of Zn2+ and PA4063-PA4066 has two potential periplasmic SBP type proteins. HmtA is a P-type ATPase which exclusively transports Zn and Cu from the periplasm to the cytoplasm. Figure adapted from a figure in V. Ducret, et al. (2022)
